Semi-Automatic Carton Sealing Machine with top & bottom closing.

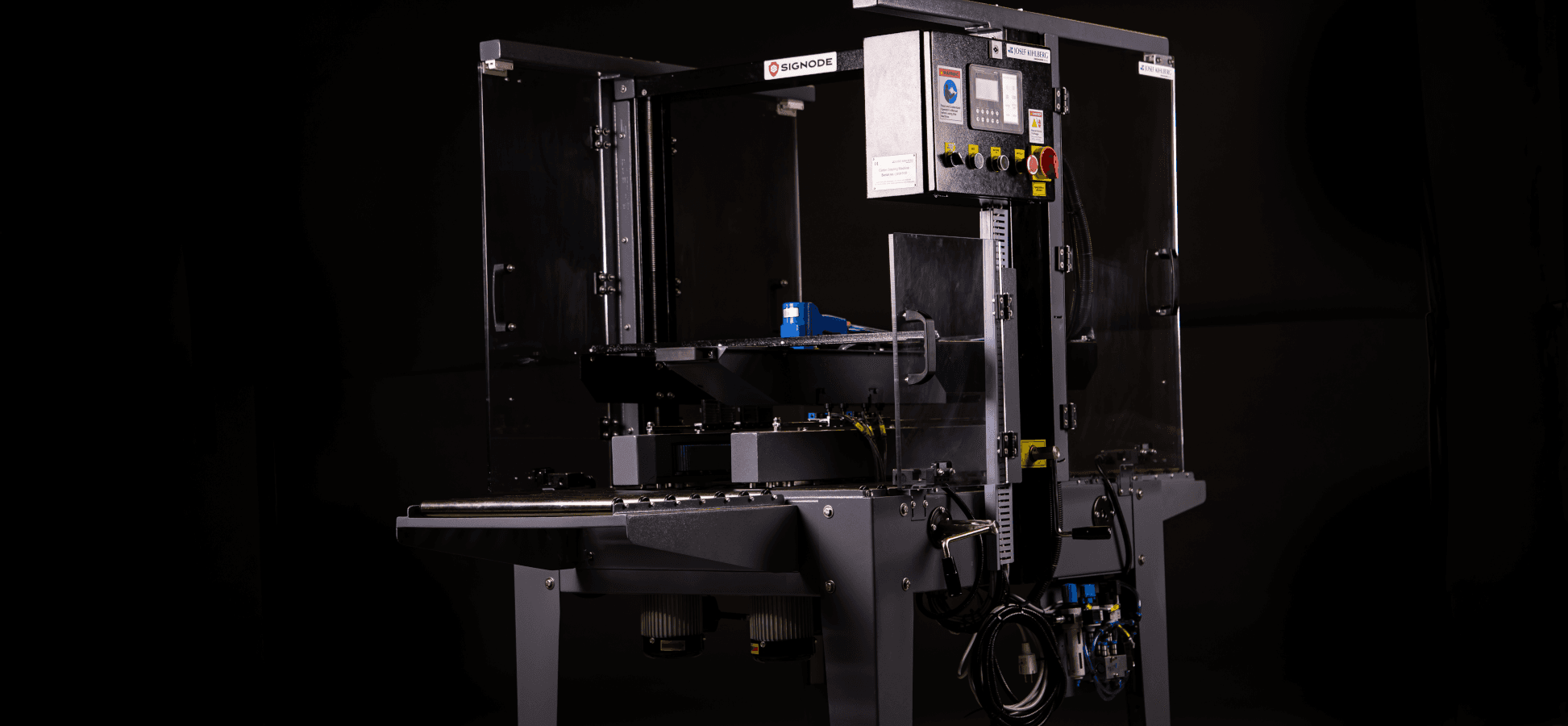

Semi-Automatic Carton Sealing Machine
Easy settings make the machine staples top and bottom, top only or bottom only. Freeing time at your packing stations.
With a belt speed of up to 18m/minute you can close all the boxes you need to get time over to production.
Easy to move around in your production to use at different places depending on where your current need is.
The carton sealing machine comes ready to work. Just plug it in with electricity and air, and you are ready to work.
Semi-Automatic carton sealing
The Carton Sealing Machine comes CE-marked and ready to be used as a stand alone device or integrated in your production lines.
The stapling process is moved away from the operator compared to hand tools and gives a safer working environment at the packing stations.
Securing your boxes with staples gives a safe and strong closing so that your goods arrives with your customers well protected.
Semi-Automatic Carton Sealing
Easy to change settings of e.g. no of staples per box or to turn of top or bottom stapling.
Operator can adjust depending on need, no programming needed.
Reload in the same fast and secure way as for your manual JK tools.
Move to the place where you need the machine the most. If you run a production you can easily move the machine to the production line you need to have an automated packing line for this week.
No system is stronger than the weakest link
Technical Data Specification
| Carton Sealing Machine | ||
|---|---|---|
| Weight | 275 kg / 606 lbs | |
| Overall size (L x W x H) | 207 x 123 x 172-191 cm | |
| Belt speed | 18m/minute | |
| Magazine capacity | JK561: 300 pcs, JK555: 5000 pcs | |
| Electricity | 1 phase | |
| Box | ||
| Overall size (L x W x H) | 20-unlimited x 16-55 x 13-55 cm | |
| Box weight | 3-40 kg | |
| Staples | ||
| Use only JK original staples! | ||
| JK561 | JK555 | |
| Type | JK561 | JK555 |
| Length | 15-18 mm | 15-18 mm |
| Width | 32 mm | 32 mm |
Take a closer look at our Semi-Automatic Carton Sealing Machine
But not limited
Manufacturing plants
Production lines
Printing companies
Warehousing
Storage centers
Mail order companies
E-commerce
Distributors
Our semi-automatic carton sealing machine handles many FEFCO standardized corrugated boxes. If you are unsure if it works with your packaging, we will gladly help you and share our expertise.
Slotted boxes
0201, 0202, 0203, 0204, 0205, 0206, 0207, 0210, 0211, 0212, 0215, 0216
Pre-closed carton
0701, 0711, 0712
Take your packing process to the next level with our semi-automatic carton sealing machine.
The machine only requires a standard 1-phase electrical connection, making it easy to install anywhere in your facility.
The machine stands on wheels and can easily be moved to the packing station where it is needed most right now.
The stapling process is moved away from the operator, giving a safer working environment at the packing stations.
An automated packing station puts less physical strain on the operator compared to manual closing.
Controlling your Carton Sealing Machine
The display clearly shows whether the machine is set to staple top and bottom, top only, or bottom only.
Easily see and adjust the number of staples per box directly on the display.
The display alerts the operator when a door is open, ensuring safe operation at all times.
Ensuring high quality all the way
Our carton sealing machine conforms with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA). EU website for CE declaration.
